TrueFit Partners with Brands That Make a World of Difference.
At TrueFit, quality isn’t just a standard — it’s our promise. Every patient deserves the very best that modern dentistry can offer. That’s why we rely exclusively on trusted, name-brand materials backed by decades of research and proven clinical success. With TrueFit, there are no shortcuts and no compromises — only consistent excellence in every restoration we create.
ARENA Star U.M Zirconia
Innovative Multi-Layer
Discs with the highest strength
Physical Properties
Aesthetics
★★★★☆
Strength
★★★★☆
Transparency
★★★★☆
Flexural Strength1
≥1,100 MPa
Transparency2
45 %
1. Measurement Conditions (Evaluated based on White Color)
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
| Shade | VITA 16 Shade |
| Strength (MPa) | ≥ 1,100 MPa |
| Thickness (T/mm) | 12T, 14T, 16T, 18T, 20T, 22T, 25T |
| Diameter (Ø) | Ø95, Ø98 (Please contact us for Ø95 size) |
| Features |
• The strength of all layers are 1,100 MPa. • Multi-layer Disc more specialized for the posterior. • 5 – 4 – 9 layers. • It is easy for beginners to use by reducing the number of coloring. • Indications: – Single Anterior/Posterior, Bridge – Full arch – Implant case |

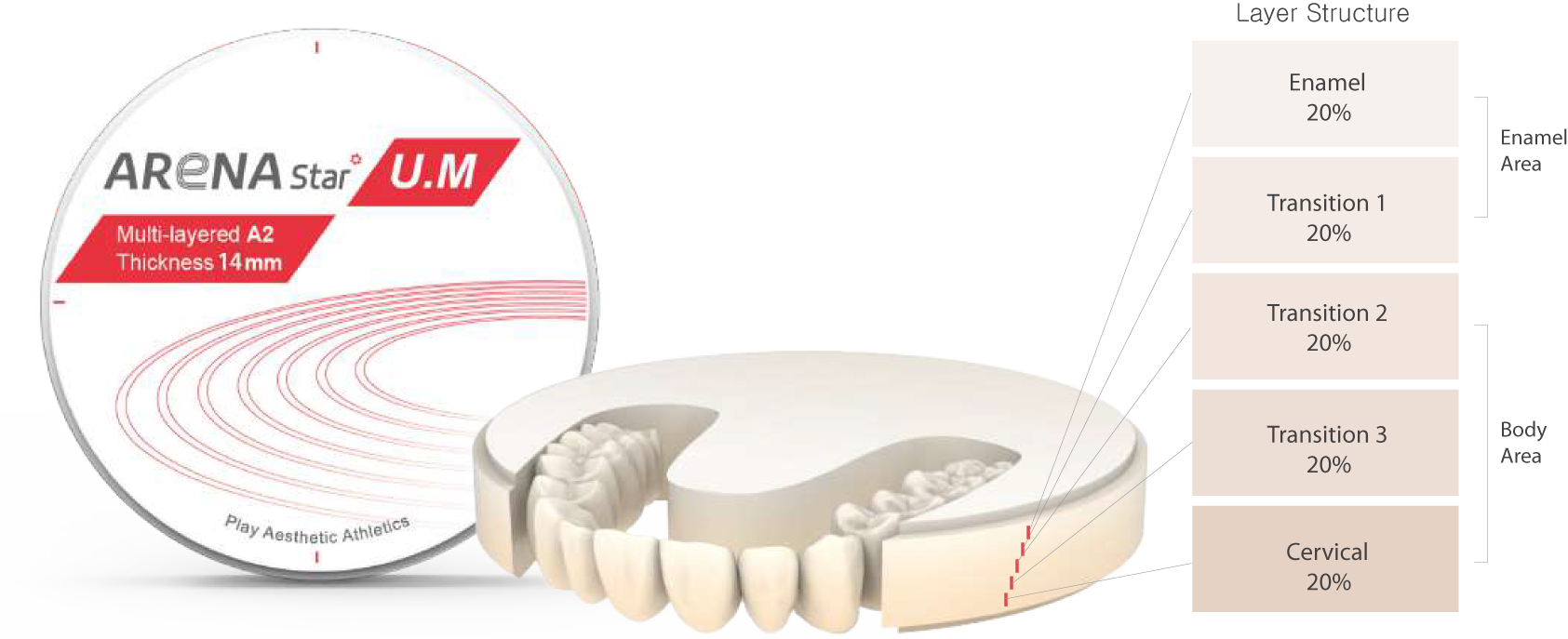

Multi-Layered Technology
ARENA Star U.M is a Multi-layer Disc that can be use in any case. Zirconia Disc
with high strength and transparency can minimize the coloring work of Dental
technicians. It will always increase the work of dental restorations
and help produce zirconia prosthetics of a natural teeth similar color
Indications

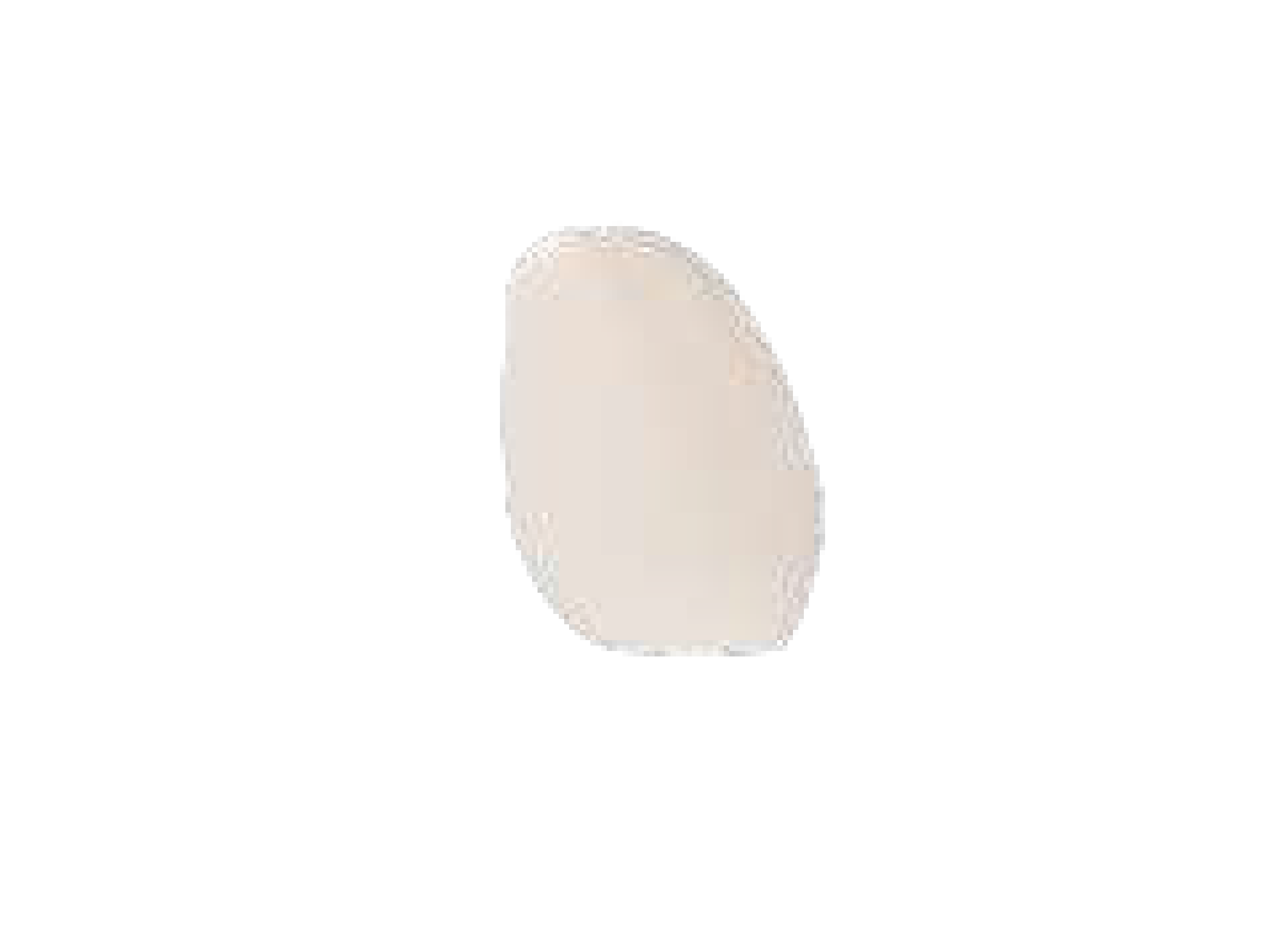

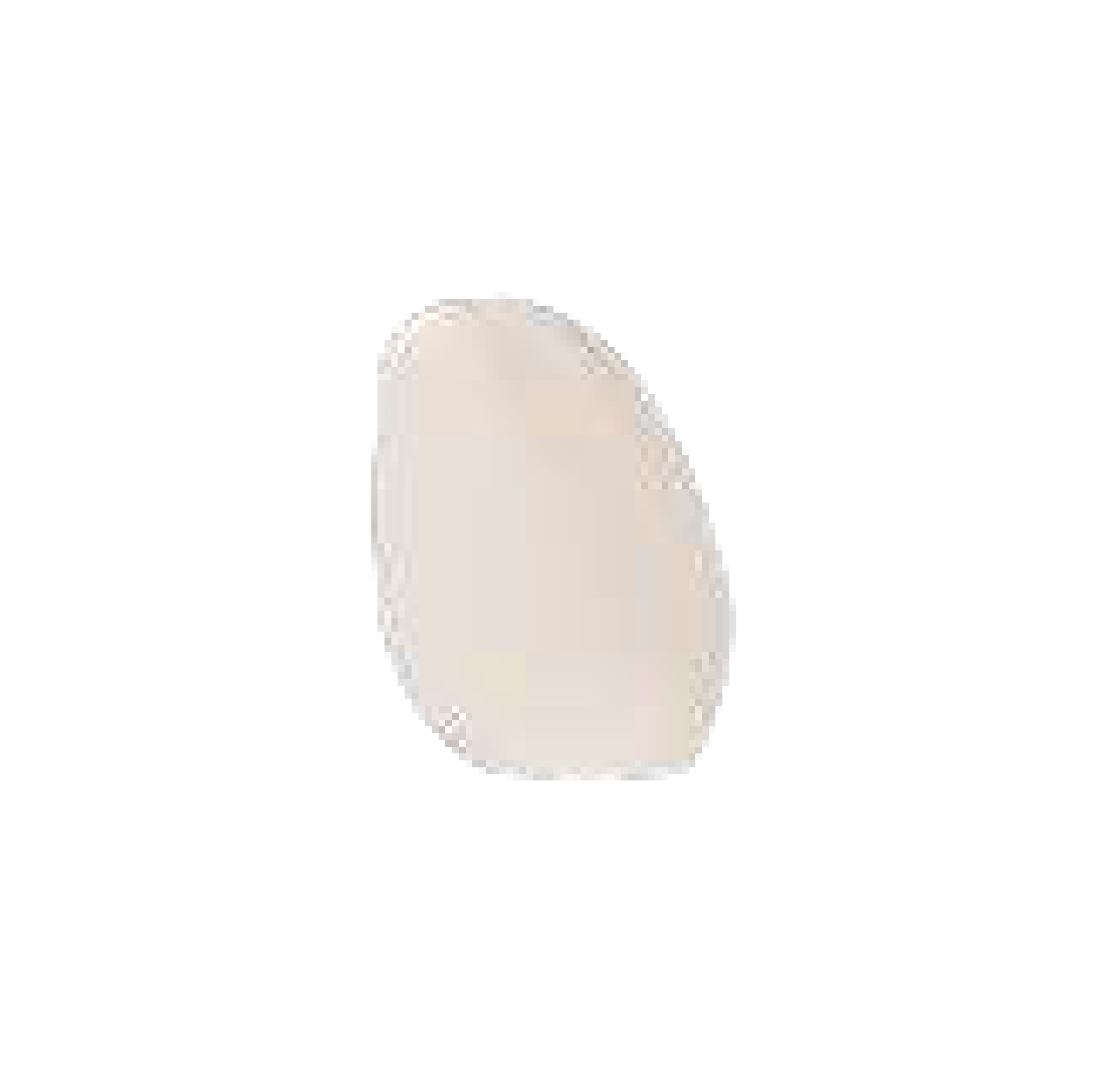

Single Crown
(Anterior)
(Anterior)
Single Crown
(Posterior)
(Posterior)

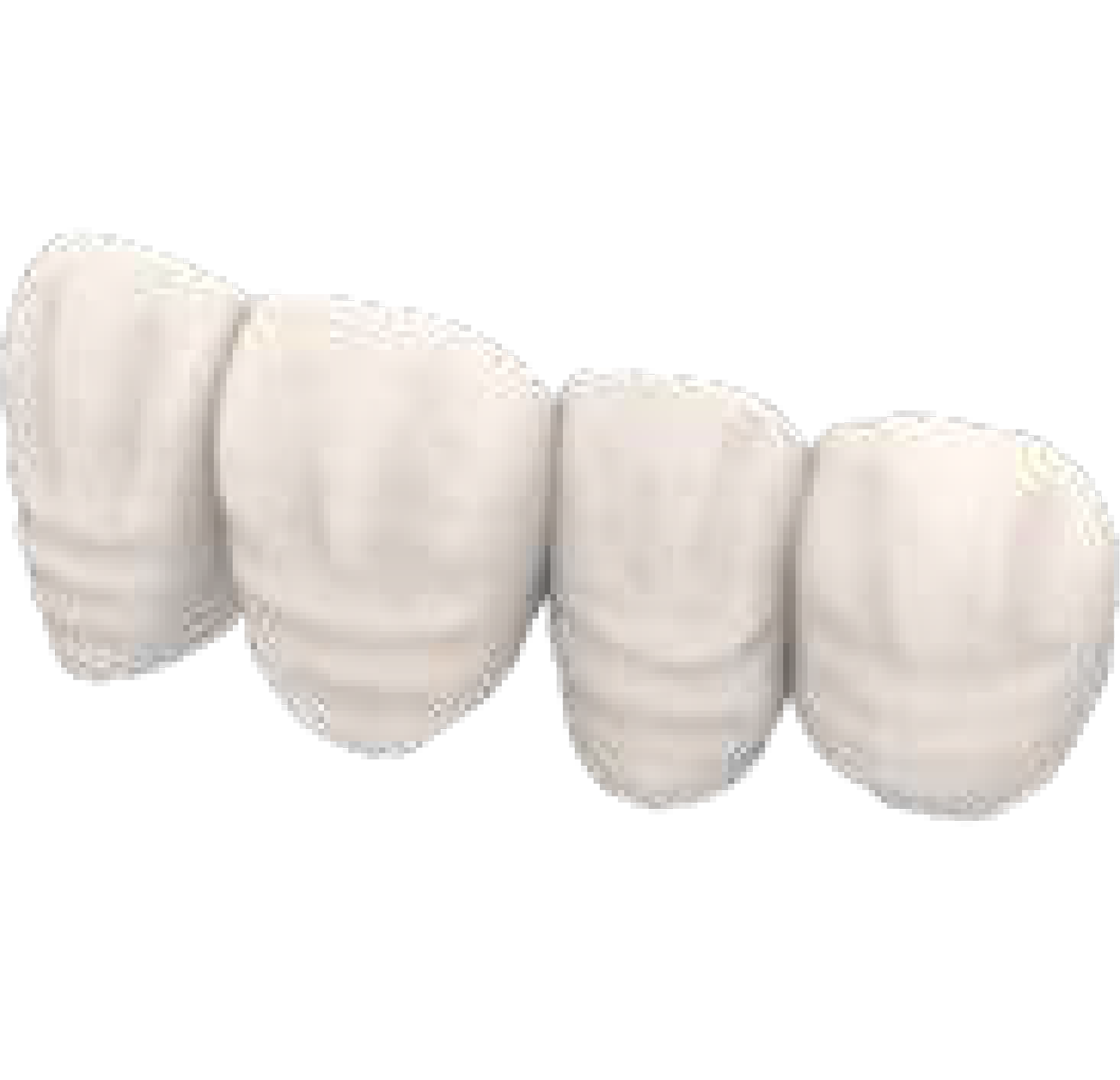

Screw-Retained Crown

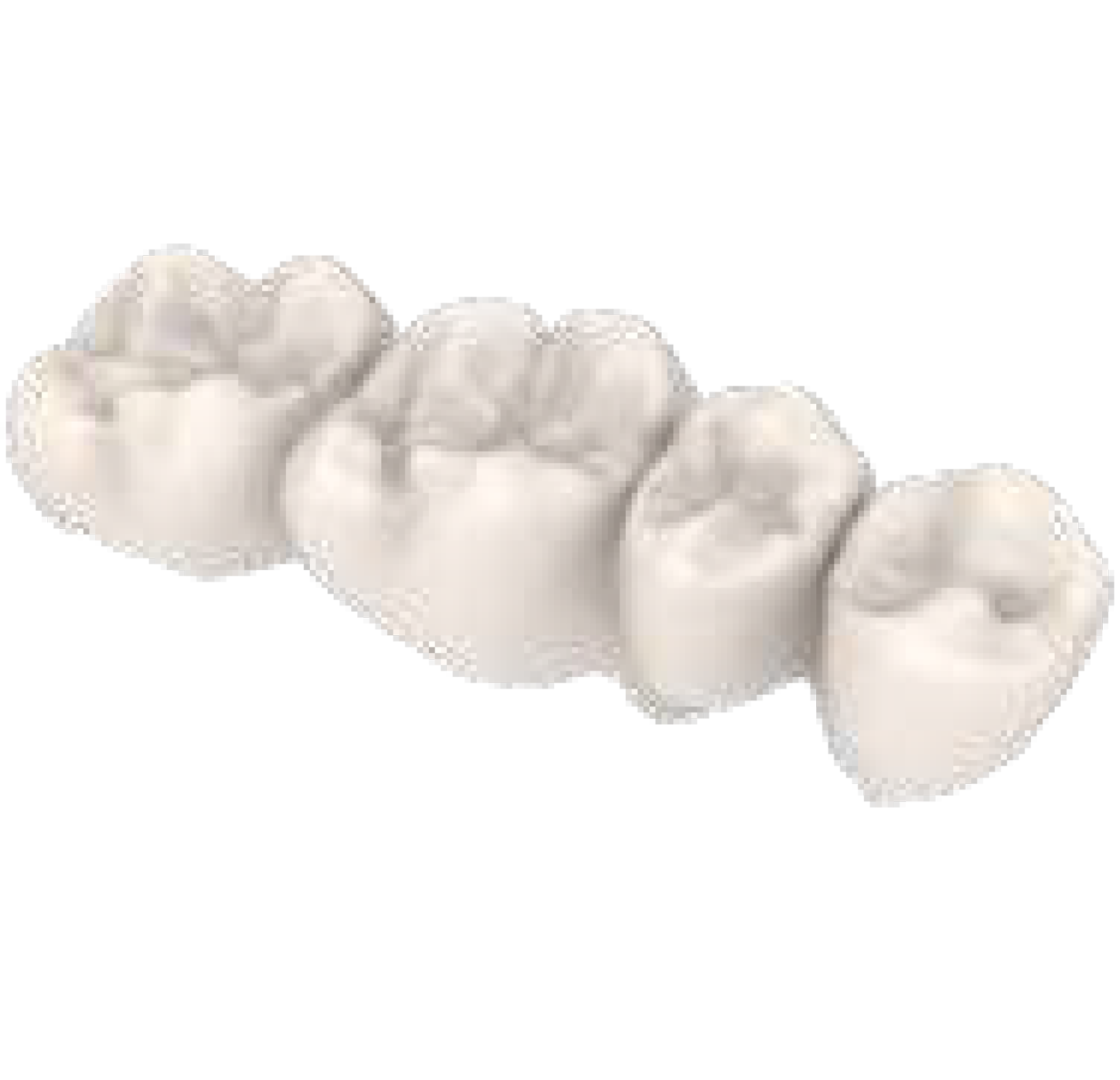

Full Case
Sintering Schedule
- Sintering Schedule
-
Step 1 Room Temperature to 900°C :
- Step 2 900°C to 1530°C ：1 hour and 50 minutes (110 minutes)
- Step 3 Hold 1530°C : 2 hours (120 minutes)
- Step 4 250°C : Cooling for 3 hours and 40 minutes (220 minutes)
-
※ Total Time : 9 hours and 15 minutes.
(Based on ARUM Sintering Schedule)
ARENA Star U.M Zirconia
Innovative Multi-Layer
Discs with the highest strength
Physical Properties
Aesthetics
★★★★☆
Strength
★★★★☆
Transparency
★★★★☆
Flexural Strength1
≥1,100 MPa
Transparency2
45 %
1. Measurement Conditions (Evaluated based on White Color)
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
| Shade | VITA 16 Shade |
| Strength (MPa) | ≥ 1,100 MPa |
| Thickness (T/mm) | 12T, 14T, 16T, 18T, 20T, 22T, 25T |
| Diameter (Ø) | Ø95, Ø98 (Please contact us for Ø95 size) |
| Features |
• The strength of all layers are 1,100 MPa. • Multi-layer Disc more specialized for the posterior. • 5 – 4 – 9 layers. • It is easy for beginners to use by reducing the number of coloring. • Indications: – Single Anterior/Posterior, Bridge – Full arch – Implant case |
Multi-Layered Technology
ARENA Star U.M is a Multi-layer Disc that can be use in any case. Zirconia Disc
with high strength and transparency can minimize the coloring work of Dental
technicians. It will always increase the work of dental restorations
and help produce zirconia prosthetics of a natural teeth similar color
Indications
Single Crown
(Anterior)
(Anterior)
Single Crown
(Posterior)
(Posterior)
Screw-Retained Crown
Full Case
Sintering Schedule
- Sintering Schedule
-
Step 1 Room Temperature to 900°C :
- Step 2 900°C to 1530°C ：1 hour and 50 minutes (110 minutes)
- Step 3 Hold 1530°C : 2 hours (120 minutes)
- Step 4 250°C : Cooling for 3 hours and 40 minutes (220 minutes)
-
※ Total Time : 9 hours and 15 minutes.
(Based on ARUM Sintering Schedule)
ARENA Star SML Zirconia
All In One Multi-Layer Disc
with Strength and Aesthetics
Physical Properties
Aesthetics
★★★★☆
Strength
★★★★☆
Transparency
★★★★☆
Flexural Strength 1 Occlusal area 600 MPa
Flexural Strength 1 Cervical area 1,100 MPa
Transparency2
45~49 %
1. Measurement Conditions (Evaluated based on White Color)
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
| Shade | VITA 16 Shade |
| Strength (MPa) | Occlusal area : 600 MPa ~ Cervical area : 1,100 MPa |
| Thickness (T/mm) | 12T, 14T, 16T, 18T, 20T, 22T, 25T |
| Diameter (Ø) | Ø95, Ø98 (Please contact us for Ø95 size) |
| Features |
• Structure of Disc by properly mixing
「4Y & 5Y」 powder. • The body under the support load is 1,100 MPa strength, and the occlusal requiring a transparent layer is 600 MPa, a Multi-Disc that reproduces both the chroma of the body and the transparency of the occlusal. • 5+4 = 9 layers • Anterior/Posterior Zirconia that anyone can easily and universally produce. • Indications: – Single, Bridge (≤ 4 Units) – Use both Anterior and Posterior |

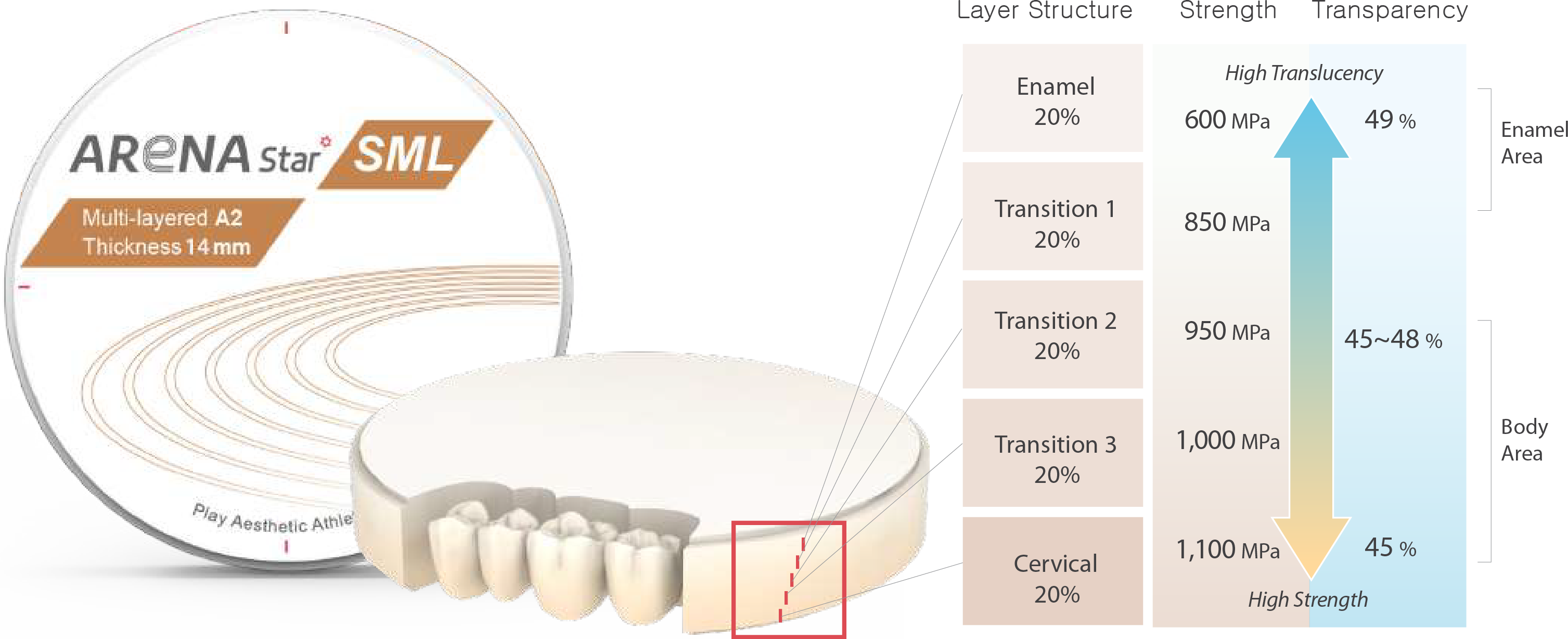

Multi-Layered Technology
ARENA Star SML is a Multi-layer Discs with the stability and aesthetics of
prosthetics. The Disc reproduces the aesthetic transparency of the prosthesis
as well as the proper strength to withstand occlusal pressure. This innovative
product is a zirconia disk that can easily and quickly express the aesthetic
properties of natural teeth, which is best for making various types.
Indications
Single Crown
(Anterior)
(Anterior)
Single Crown
(Posterior)
(Posterior)

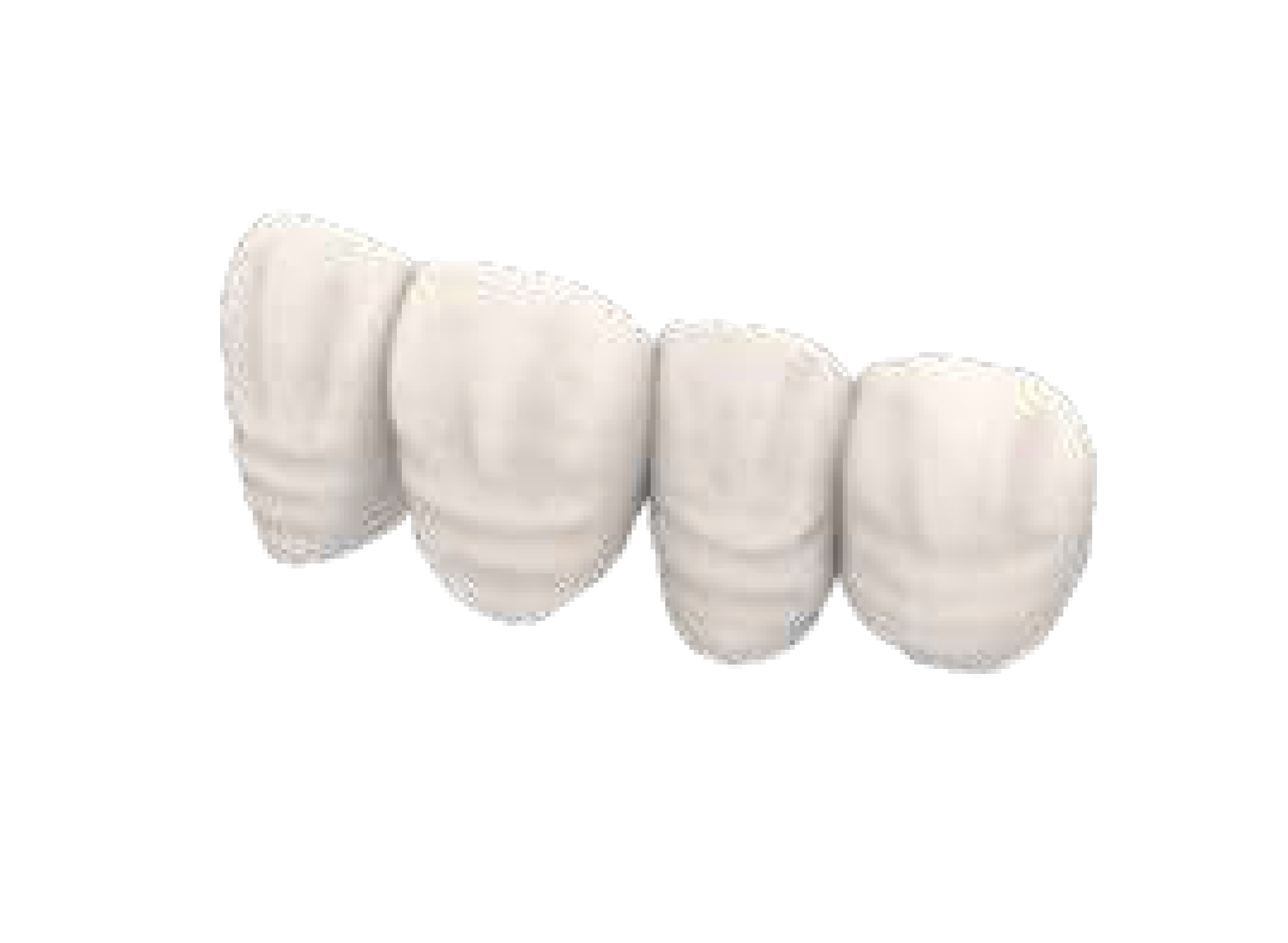

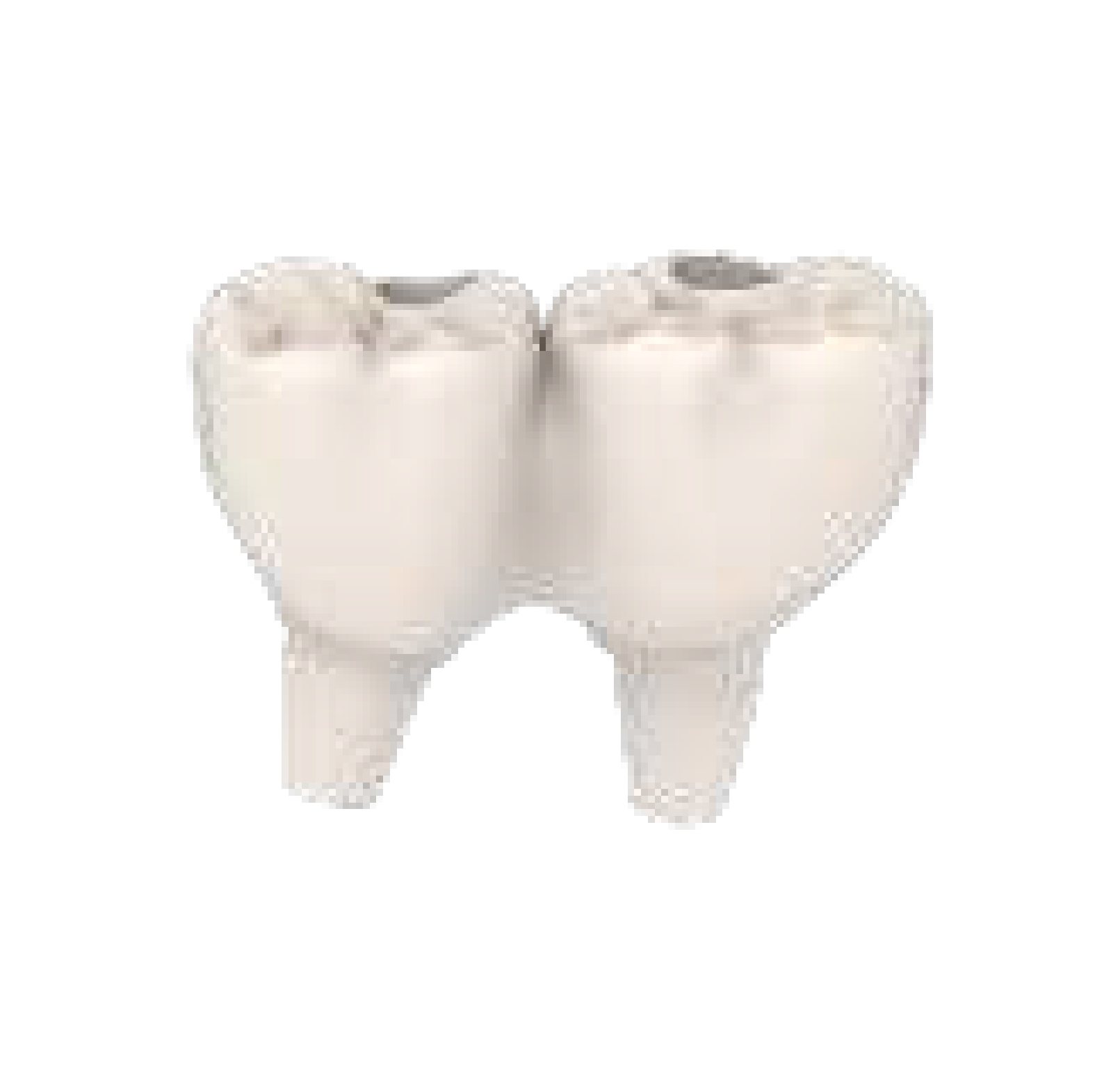

Screw-Retained Crown
Full Crown Bridge
(Up to 4-Unit bridge with Molar)
(Up to 4-Unit bridge with Molar)
Sintering Schedule
- Sintering Schedule
-
Step 1 Room Temperature to 900°C :
- Step 2 900°C to 1530°C ：1 hour and 50 minutes (110 minutes)
- Step 3 Hold 1530°C : 2 hours (120 minutes)
- Step 4 250°C : Cooling for 3 hours and 40 minutes (220 minutes)
-
※ Total Time : 9 hours and 15 minutes.
(Based on ARUM Sintering Schedule)
ARENA Multi with TOSOH
Enamel Reproduction is Perfect
The first choice of aesthetics prosthetics
Physical Properties
Aesthetics
★★★★☆
Strength
★★★★☆
Transparency
★★★★☆
Flexural Strength 1 Occlusal area 600 MPa
Flexural Strength 1 Cervical area 800 MPa
Transparency2
47~51 %
1. Measurement Conditions (Evaluated based on White Color)
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
2. Flexural Strength: Tested according to ISO 6872:2015, sample size 3×4×40 mm.
3. Transparency: All light transmittance, light source D65, sample thickness 1.0 mm.
| Shade | VITA 16 Shade |
| Strength (MPa) | Occlusal area : 600 MPa ~ Cervical area : 800 MPa |
| Thickness (T/mm) | 12T, 14T, 16T, 18T, 20T, 22T, 25T |
| Diameter (Ø) | Ø95, Ø98 (Please contact us for Ø95 size) |
| Features |
• Use the excellent TOSOH 「5Y」 powder to match • The color of the teeth Layered shades to fit. • 5+4 = 9 layers • Anterior aesthetic zirconia that even beginners can easily make. • Indications: – Single, Bridge (≤ 4 Units) – Only Anterior case |
Multi-Layered Technology
ARENA Multi with TOSOH is a highly aesthetic Multi-layer Discs.
This excellent Disc will help anyone who is a dental technician to make the
anterior aesthetic prosthesis the best quality. Use ARENA Multi with TOSOH
Disc to make beautiful prosthetics at any time.
Indications

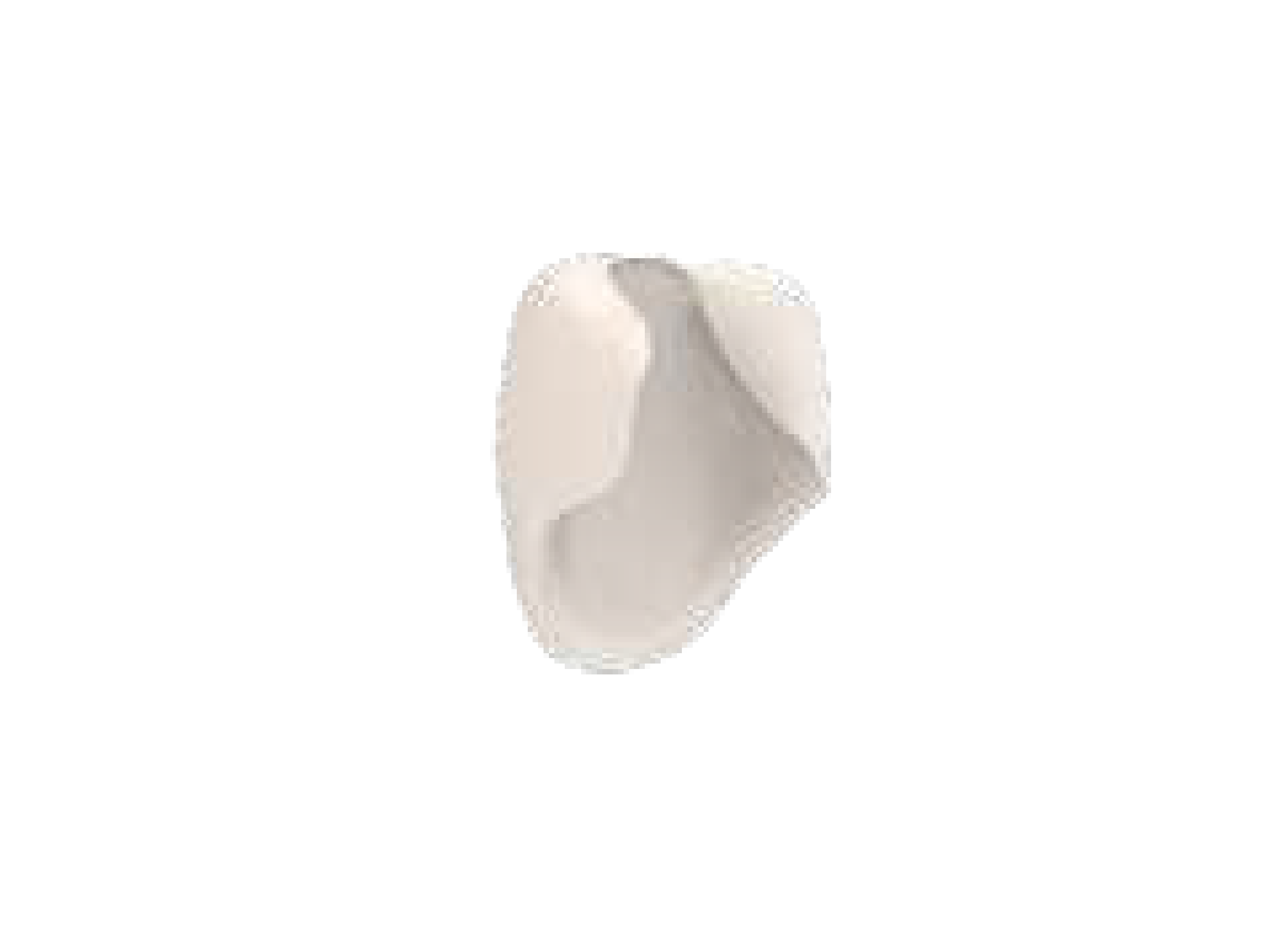

Veneer

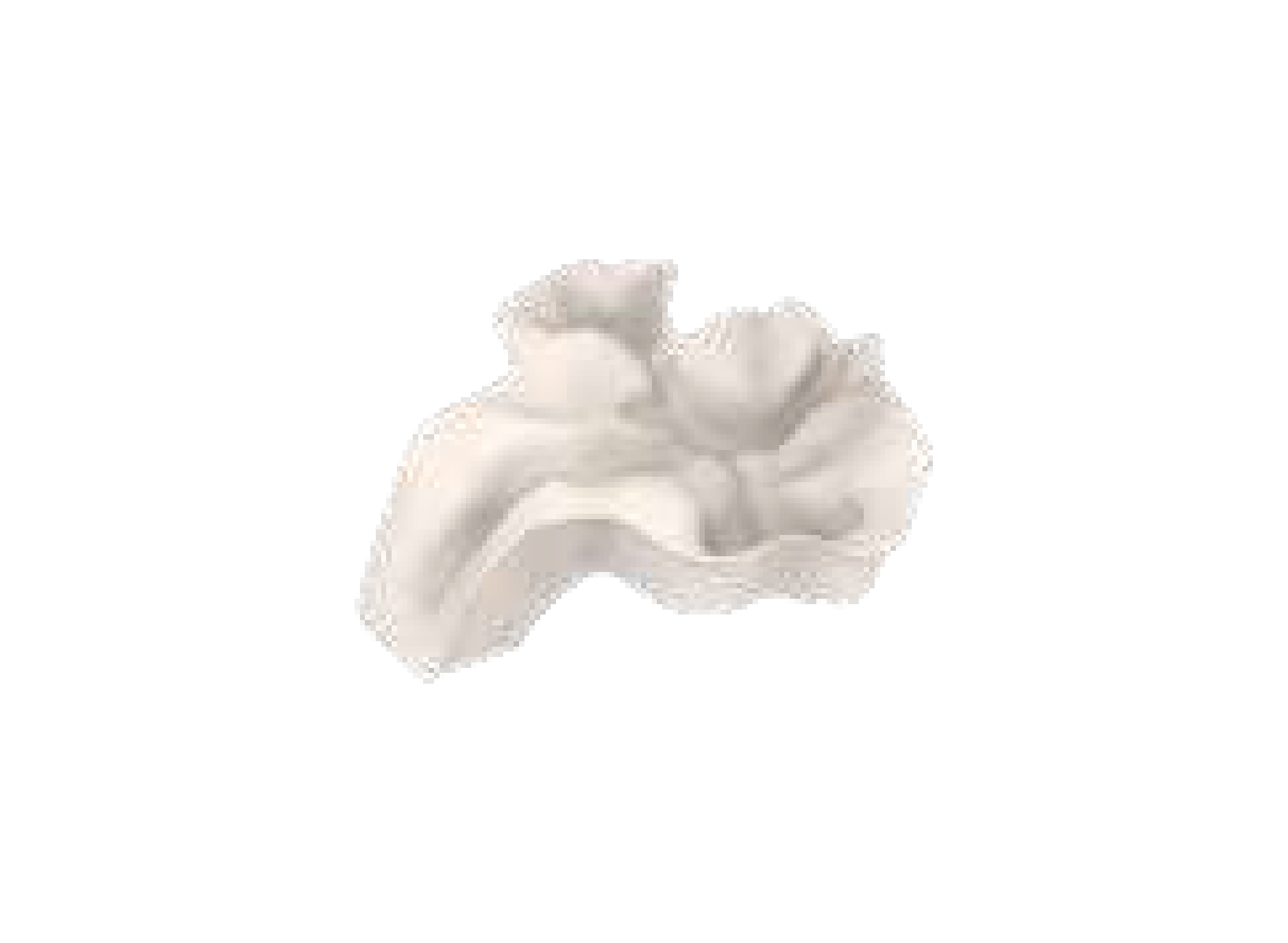

Inlay / Onlay
Single Crown
(Anterior)
(Anterior)
Up to 4-Unit Brigde
(Only Anterior Case)
(Only Anterior Case)
Sintering Schedule
- Sintering Schedule
-
Step 1 Room Temperature to 900°C :
- Step 2 900°C to 1530°C ：1 hour and 50 minutes (110 minutes)
- Step 3 Hold 1530°C : 2 hours (120 minutes)
- Step 4 250°C : Cooling for 3 hours and 40 minutes (220 minutes)
-
※ Total Time : 9 hours and 15 minutes.
(Based on ARUM Sintering Schedule)

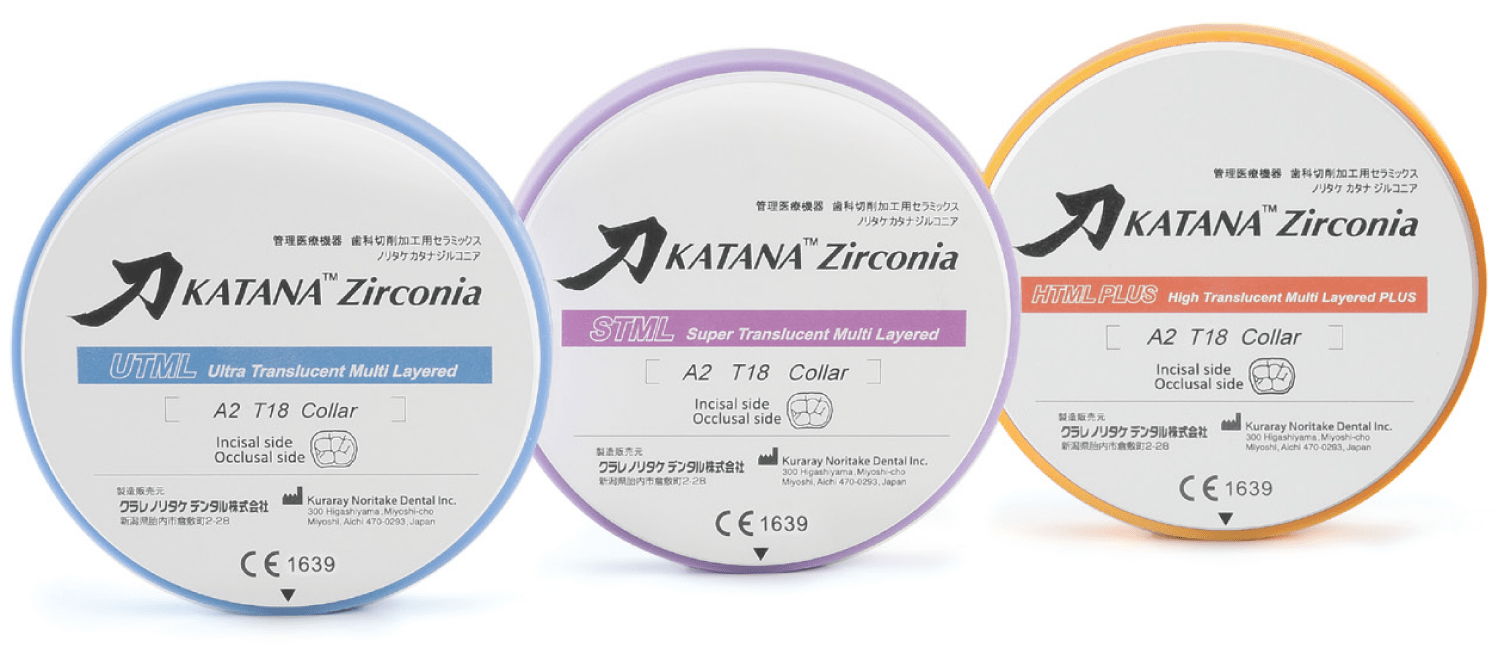

UTML Ultra Translucent Multi Layered
STML Super Translucent Multi Layered
HTML PLUS High Translucent Multi Layered PLUS

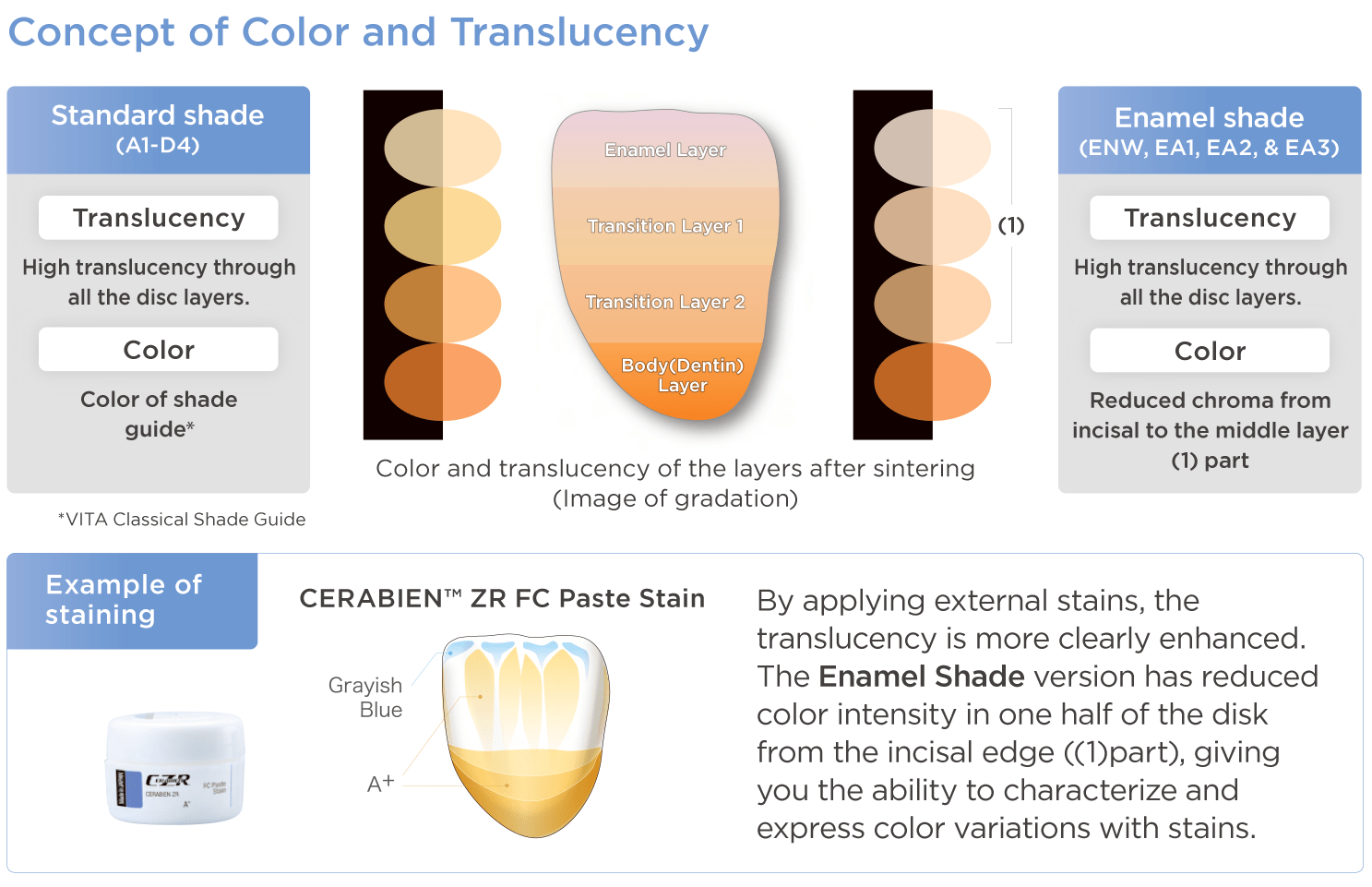

High Esthetic Potential for Zirconia Dental Restorations* The "KATANA™ Zirconia" UTML and STML, which feature translucency similar to natural enamel, are now available!
You can achieve a highly esthetic restoration, with predictable results, while saving time (even when fabricating esthetic anterior restorations). "Comparison with our conventional products.

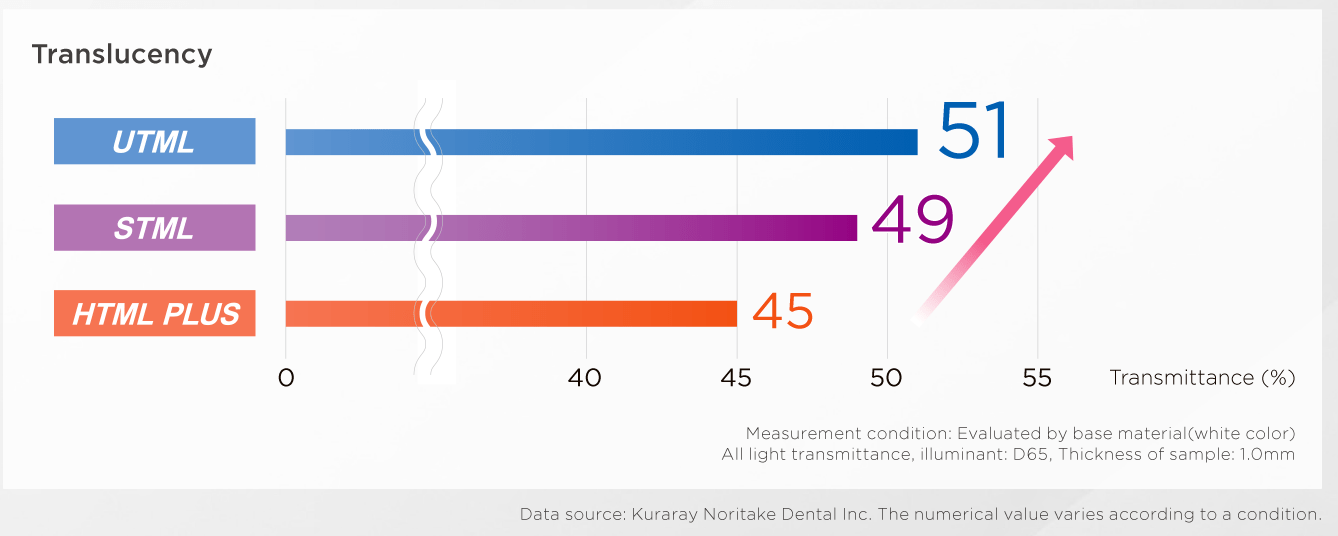

Higher Translucency Than Conventional Zirconia
Our proprietary research and development has increased the translucency of "KATANA™ Zirconia" UTML more than conventional zirconia. This enables you to have natural translucency.

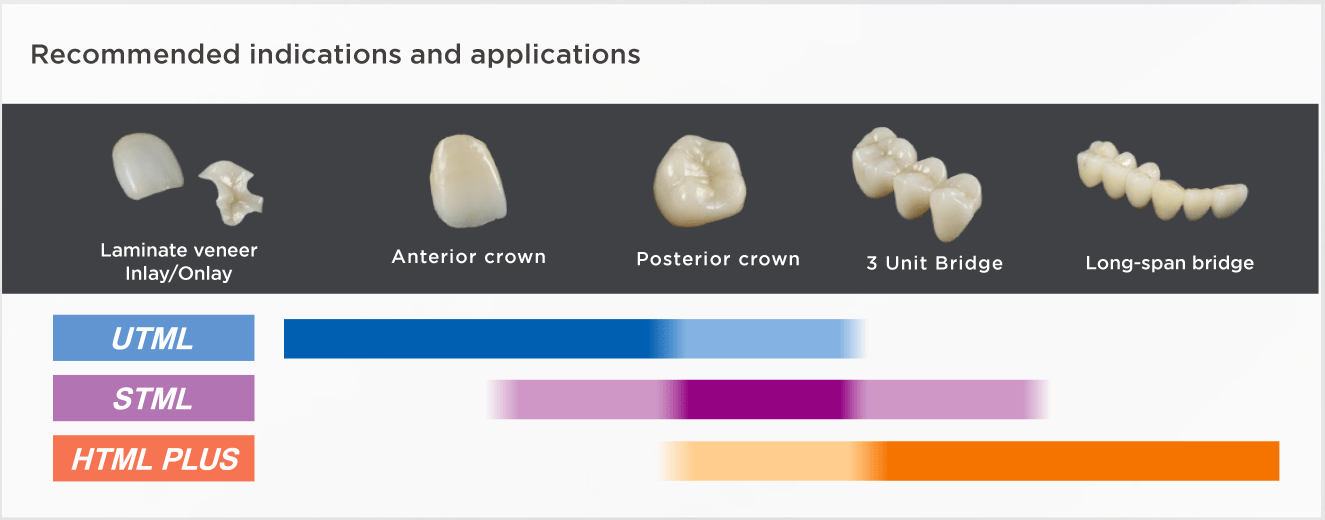

Wide Range of Clinical Applications Using Monolithic Restoration

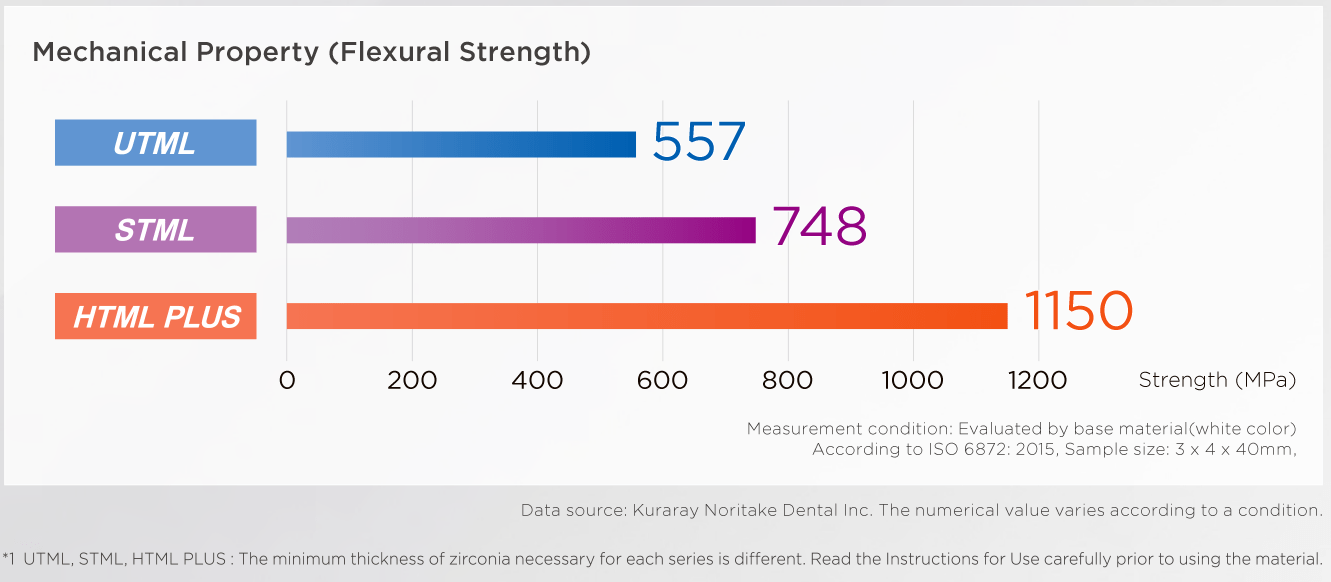

You can fabricate many restorations, from esthetic anteriors to posterior bridges by selecting the right translucency and mechanical properties*
UTML Ultra Translucent Multi Layered
UTML has the most translucency among the "KATANA™ Zirconia" series, and is recommended for fabricating anterior crowns or laminate veneers. Two different shade types are available: Standard shade and Enamel shade.
STML Super Translucent Multi Layered

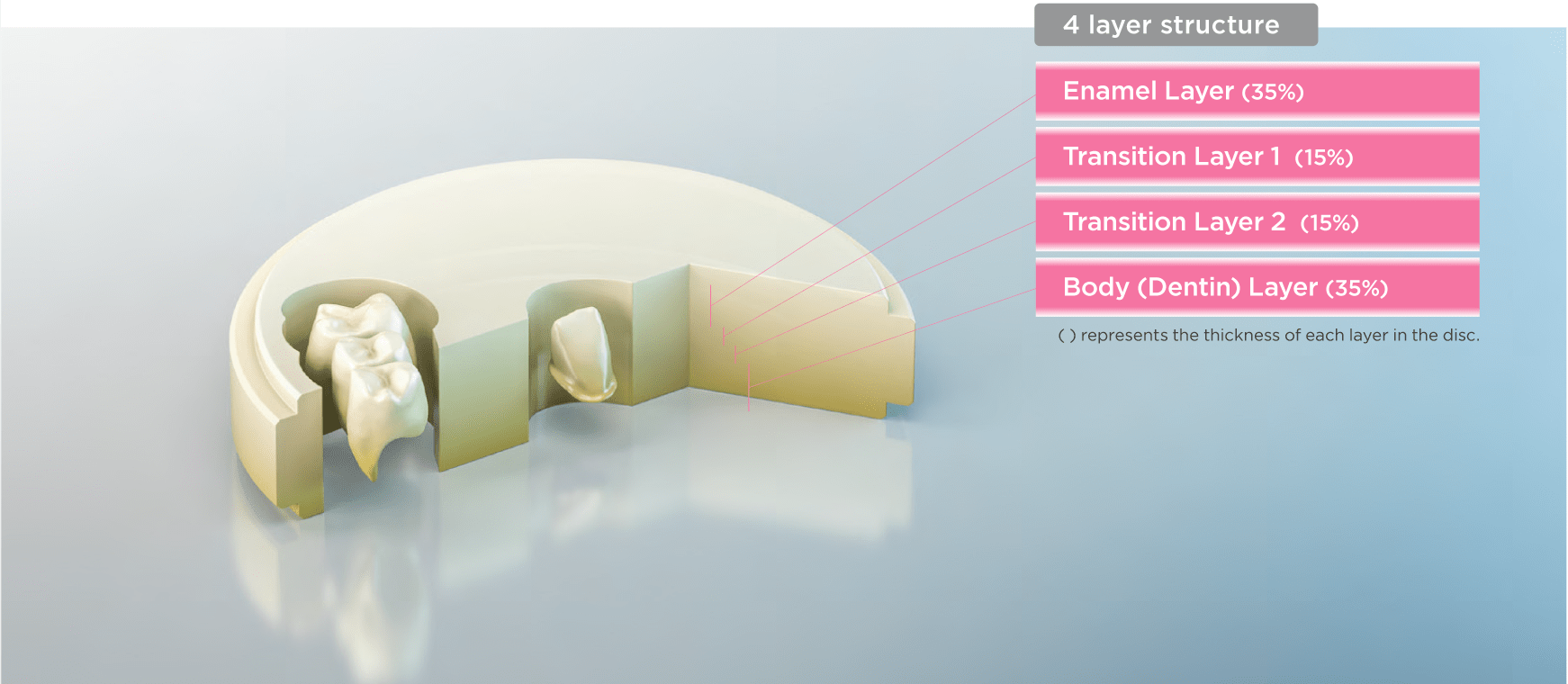

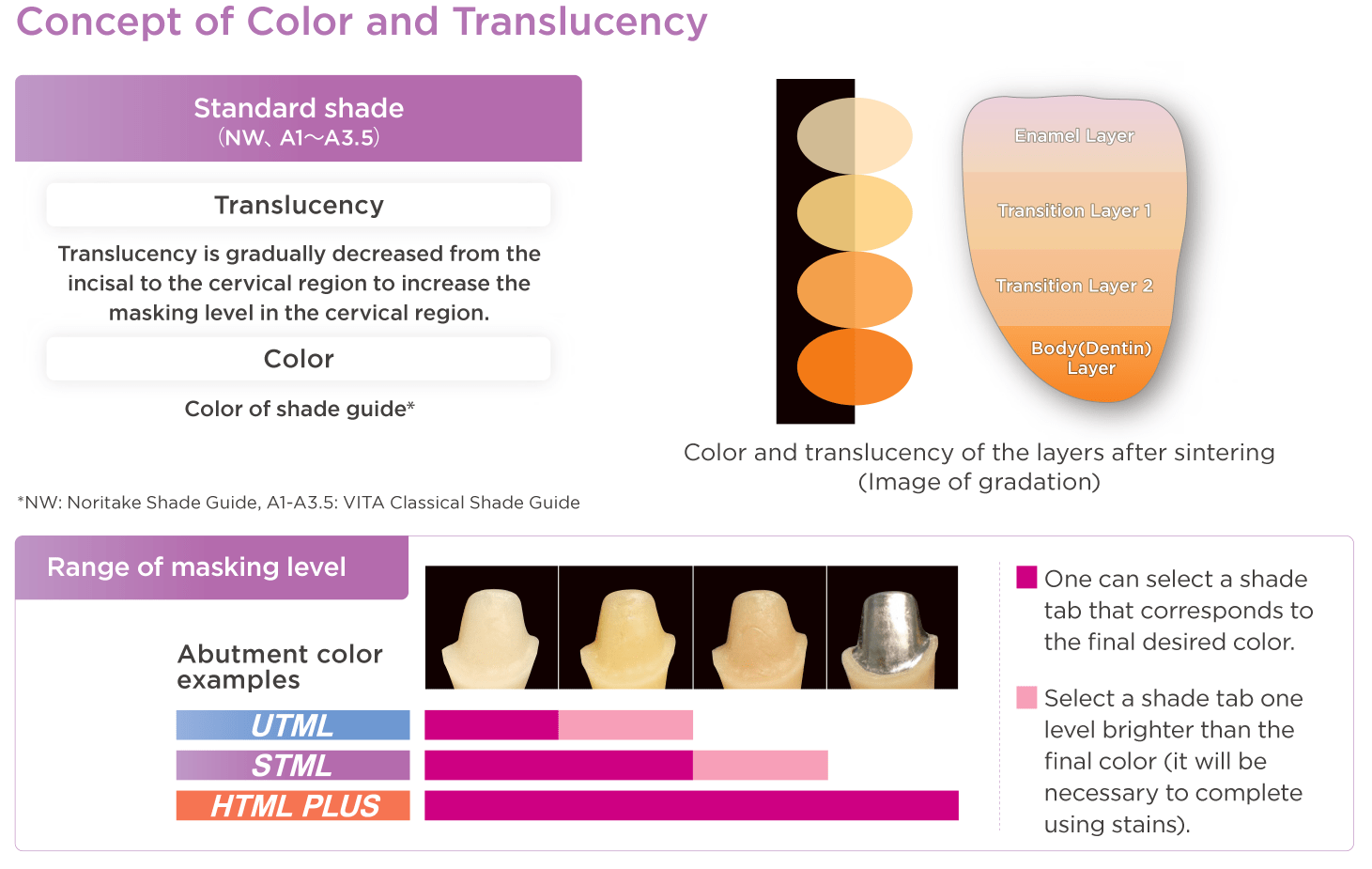

STML has a well-balanced combination of translucency and mechanical properties. This version of "KATANA™ Zirconia" has gradations of translucency as well as color, exhibiting a masking effect in the cervical area. Using this series, one can easily obtain the desired shades to accommodate the variety found in prepared tooth conditions of clinical cases.
